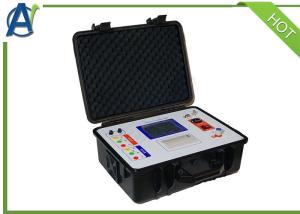

Automatic TTR Transformer Turn Ratio Tester Single Or Three Phase

Brand Name : AI

Model Number : TTR-I

Certification : ISO

Place of Origin : China

MOQ : 1 Set Transformer Turn Ratio Tester

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000 sets per month

Delivery Time : 15 days

Packaging Details : Transformer Turn Ratio Tester packed in Plywood case

Power supply : AC220V±10%, 50Hz/60Hz

Display : LCD

Measuring range : 1-10000

Measuring group : 1-12

Warranty : 1 Year

Keyword : Transformer Turns Ratio Testing Equipment

Test voltage : 0~80V, frequency 50Hz

Weight : 22KG

Contact Now

Transformer Turns Ratio (TTR) Testing Equipment

I. Introduction:

  • This transformer turns ratio testing equipment can test voltage ratio for three or singe phase transformer

  • The group vector measurement for three phase transformer.

  • The polarity measurement for single phase transformer or CT/PT

  • Voltage ratio error calculation

  • Current transformer ratio measurement

  • Excitation current measurement in ratio testing

  • Reproduction the AC test voltage from power source to reduce the effects of bad power source

  • Save the test results in the memory internal the TTR meter

  • This turns ratio testing equipment can print the test results by micro build-in printer

  • Reverse connection detect unit to prevent the high voltage injected to operator

  • Over current protection unit integrated in software and hardware

  • Upload the test results to PC by RS232 and make word report by software

II. Specifications:

1 Product Name Single and Three Phase Transformer Turns Ratio TTR Testing Equipment
2 Ratio measurement range 1-10000
3 Group measurement 1-12
4 Phase measurement error 1 degree
5 Ratio measurement error 1-2000 ± 0.2%RDG 2000-10000 ± 0.5%RDG
6 Test voltage 0~80V, frequency 50Hz
7 Power supply AC220V ± 10%, 50Hz/60Hz
8 Environment temperature 0-50°C
9 Humidity ≤85%R
10 Dimension 58*45*36CM
11 Weight 22Kg

Spare Package of Single or Three Phase Automatic Transformer Turns Ratio Testing Equipment

NO. Name Quantity Unit
1 Main unit 1 Set
2 Test cable 2 Roots
3 Power cable 1 Root
4 Ground wire 1 Root
5 Fuse(3A) 5 PCS
6 PC software CD 1 PC
7 USB-serial wie 1 Root
8 Accessory bag 1 PC

Automatic TTR Transformer Turn Ratio Tester Single Or Three Phase

Automatic TTR Transformer Turn Ratio Tester Single Or Three Phase
