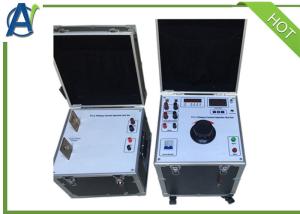

25KVA Primary Current Injection Test Kit High Current Generator Instrument

Brand Name : AI

Model Number : PCI-2

Certification : ISO

Place of Origin : China

MOQ : 1 Set Primary Current Injection Test Kit

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000 sets per month

Delivery Time : 15 days

Packaging Details : Primary Current Injection Test Kit packed in Plywood case

Power supply : AC220V or AC 400V, 45Hz~65Hz

Display : Digital

Keyword : Primary Current Injection Test Kit

Output Capacity : 3KVA-15KVA

Warranty : 1 Year

Typical output current : 500A or 1000A or 2000A

Impendence voltage : 8%

Idle current : 6%

Contact Now

Primary Current Injection Tester System with Circuit Breaker Timer

I. Introduction:

PCI series primary current injection tester is applied in power system for circuit breaker test, protection system test and current transformer test. The current injection test set generates a high current from power supply to simulate the rated current or fault current in the primary circuit of power equipment.

The 1000A/15KVA primary injection test system is designed in integrated model.

Features:

1 High current output injected to the main circuit of power line to simulate the fault current. Then check whether the protection system will be operated according to the design.
2 High current output injected to the primary of current transformer and then measure the inducted current from secondary
by error measurement instrument to check the ratio error and phase displacement of CT.
3 High current output injected to the main circuit of circuit breaker to simulate the rated current in primary. Then check the stability of circuit breaker according to the temperature rise procedure.
4 This primary current injection test set is also considered as a AC high current source in power equipment or cable test.

5.Current is measured from the secondary of current transformer which is installed in the internal of the current booster.

III. Specifications:

1 Power supply AC220V or AC 400V, 45Hz~65Hz. The power supply voltage is depends on the power output capacity, as below.
2 Typical output current

500A or 1000A or 2000A

Typical output capacity 3KVA or 5KVA or10KVA or15KVA
It can be customized according to your requirements from above specs
3 Impendence voltage 8%
4 Idle current 6%
5 Current distortion <5%
6 Display unit 4 and 1/2 digitals current meter
7 Maximum measurement error 0.5%RDG+5D
8 Optional timer 1)4 digital timer from 0~9999s / 0~999.9s /0~99.99s, accuracy 0.5%RDG+5D
2)5 digital timer from 0~99999s / 0~9999.9s /0~999.99s, accuracy 0.2%RDG+2D
3)6 digital timer from 0~999999s / 0~99999.9s /0~9999.99s, accuracy 0.1%RDG+1D
9 Work temperature 0~40 C, Humidity <90%
